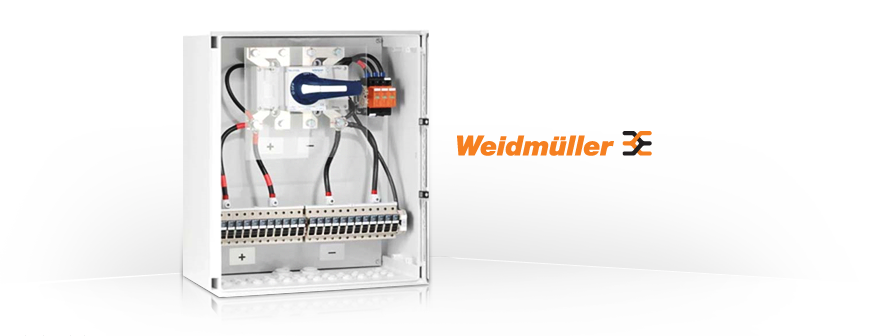

제품안내태양광발전 접속반통신형
| Model Name | QPV_08CH_NT | QPV_10CH_NT | QPV_12CH_NT | QPV_14CH_NT | QPV_16CH_NT | QPV_20CH_NT | QPV_24CH_NT |
|---|---|---|---|---|---|---|---|
| Operating ambient temperature range | -25°C to +50°C | -25°C to +50°C | -25°C to +50°C | -25°C to +50°C | -25°C to +50°C | -25°C to +45°C | -25°C to +45°C |
| Rated DC current per input (Inc) | 9.4 A at 50°C ambient | 9.4 A at 50°C ambient | 9.5 A at 50°C ambient | 9.5 A at 50°C ambient | 9.5 A at 50°C ambient | 9.5 A at 50°C ambient | 9.5 A at 50°C ambient |
| Enclosure dimensions (H x W x D) |
530 x 430 x 200 (mm) | 647 x 436 x 250 (mm) | 747 x 536 x 300 (mm) | 747 x 536 x 300 (mm) | 747 x 536 x 300 (mm) | 747 x 536 x 300 (mm) | 847 x 636 x 300 (mm) |
| Number of DC inputs (+ & - being one input) | 8 | 10 | 12 | 14 | 16 | 20 | 24 |
| DC output wires' to be connected to / cross-section (stranded) | M8 bolt and nut connection / ≤ 185 mm² | M8 bolt and nut connection / ≤ 185 mm² | M8 bolt and nut connection / ≤ 185 mm² | M8 bolt and nut connection / ≤ 185 mm² | M8 bolt and nut connection / ≤ 185 mm² | M10 bolt and nut connection / ≤ 240 mm² | M10 bolt and nut connection / ≤ 240 mm² |
| 카달로그 다운로드 (PDF) |  |
|
|
|
|
|
|
| Fixing system | protected outdoors (≤ 1 km from sea) |
|---|---|
| Degree of protection (acc. to IEC 60529) | IP65 |
| Conformity with norms | IEC 61439-2 ed 2.0 / EN 61439-2:2011 |
| Rated DC voltage (Un) | 1000 VDC |
|---|---|
| Rated DC current per input (10h short-circuit at main output) | 1.25·Inc |
| Switch disconnector breaking & making capacity (acc. to IEC 60947-3) | 400 A(DC21B 1,000 V) |
| Circuit breaker breaking & making capacity (acc. to IEC 60947-2) | N/A |
| Contactor breaking & making capacity (acc. to IEC 60947-4-1) | N/A |
| Switch-disconnector / Circuit breaker / Contactor handle location | direct handle (inside enclosure) |
| DC earthing system | floating positive and negative |
| Surge protection on DC ports | 1000V DC, type II, Imax = 40 kA, Up ≤ 4.0/4.0 kV, aux. contact |
| Form factor | cabinet with hinged door(s) |
|---|---|
| Material | glass-fiber reinforced polyester (GFRP), polycarbonate cover |
| Fixing system | direct wall mount + plastic wall mount lugs |
| Positive DC input wires' to be connected to / cross-section (stranded) | screw connection / 0.75 - 25 mm² |
|---|---|
| Negative DC input wires' to be connected to / cross-section (stranded) | screw connection / 0.75 - 25 mm² |
| Positive / Negative DC input wires' outer diameter | 5 - 10 mm |
| Fuses | fuse-links and fuse-disconnector |
| Fuse form factor | 10 x 38 mm |
| Location of fuses | positive and negative inputs |
| Fuse-link rated current (In) | 15 A |
| Fuse-link time-current characteristic | gPV (EN 60269-6) |
| Earth wire to be connected to / cross-section (stranded) | screw connection / 2.5 - 35 mm² |
| Earth wire outer diameter | 6 - 12 mm |
| Number of DC outputs (+ & - being one output) | 1 |
|---|---|
| DC output wires' outer diameter | 18 - 25 mm |
| Notes | |
|---|---|
| Client | |
| EPC CONTRACTOR | fuse holders with led |
